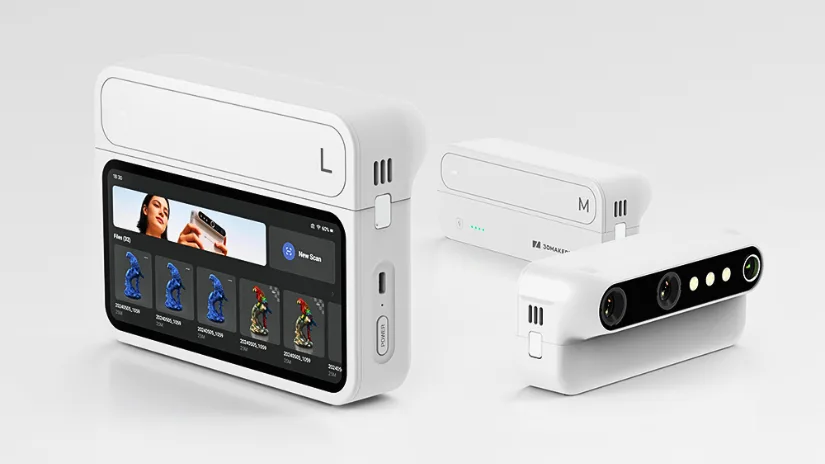

The new 3DMakerpro Turtle introduces a modular approach to 3D scanning, allowing users to swap between S, M, and L scanning modules to suit different object sizes and applications. Beyond Turtle, 3DMakerpro continues to expand its lineup of innovative 3D scanning solutions for creators and professionals. From LiDAR spatial scanners such as Raven and Eagle to standalone scanners like Toucan, the company is building a broader ecosystem that covers a wide range of 3D scanning technologies.
This guide highlights the latest additions to the 3DMakerpro lineup and will be updated as new scanners, software features, and hands-on examples become available.
Table of Contents (Jump to a Section)
3DMakerpro Turtle Modular 3D Scanner
Where to Buy – Pricing
Turtle Control Pad
Regular Price: $1,299
Early Bird Price: $989 (Additional $50/€50 OFF with an exclusive code Withus50)
Turtle S, M, L Modules
Regular Price: $699
Exclusive Price: $404 (Additional $50/€50 OFF with an exclusive code Withus50)
What’s in the Box

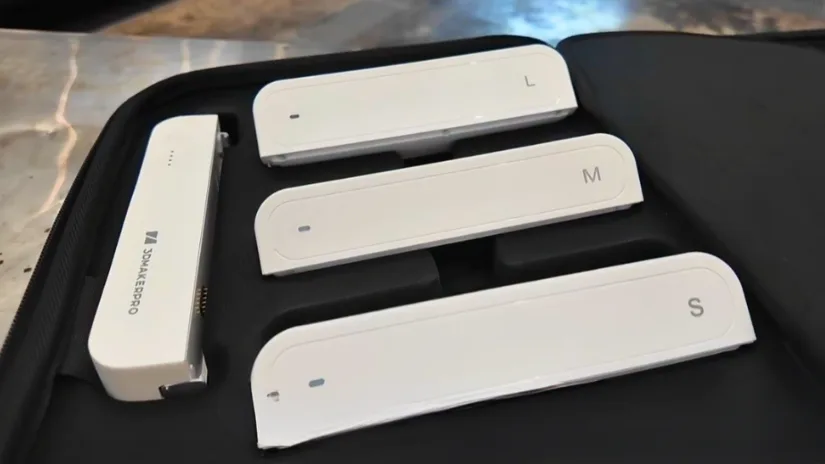

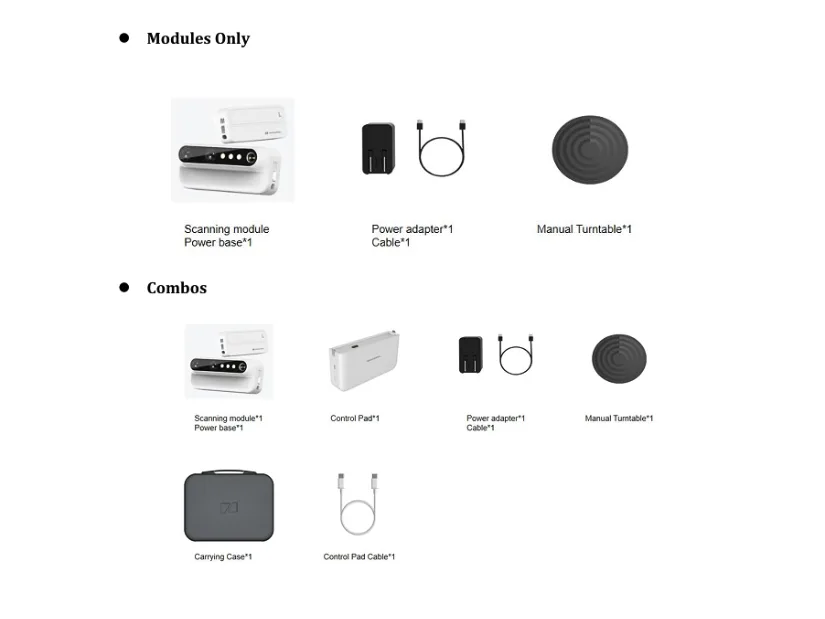

The 3DMakerpro Turtle is available in two configurations. The Modules Only package includes the scanning module with power base, power adapter, USB cable, and a manual turntable. The Combo version adds a dedicated control pad, carrying case, and control pad cable, providing a more complete standalone scanning setup.
Technical Specifications

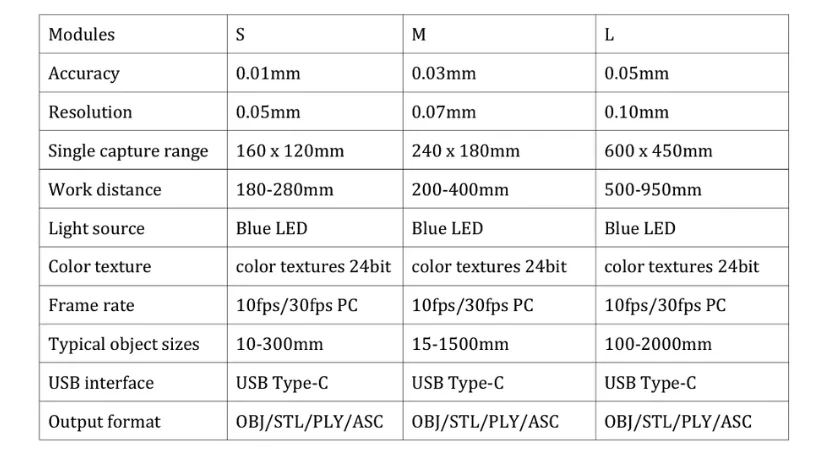

Rather than offering a single scanning configuration, the 3DMakerpro Turtle uses three interchangeable scanning modules designed for different object sizes and accuracy requirements. The S, M, and L modules allow users to optimize the scanner for everything from small detailed objects to much larger subjects while maintaining a standalone workflow.
The Turtle Control Pad acts as the processing hub, featuring a 6.4-inch 2K AMOLED touchscreen, 16 GB of RAM, 256 GB of SSD storage, an eight-core 2 GHz processor, Wi-Fi 5 connectivity, USB Type-C, and a 10,000 mAh battery rated for around two hours of operation. Together, these specifications allow Turtle to perform standalone scanning without relying on a connected computer.
Main Features

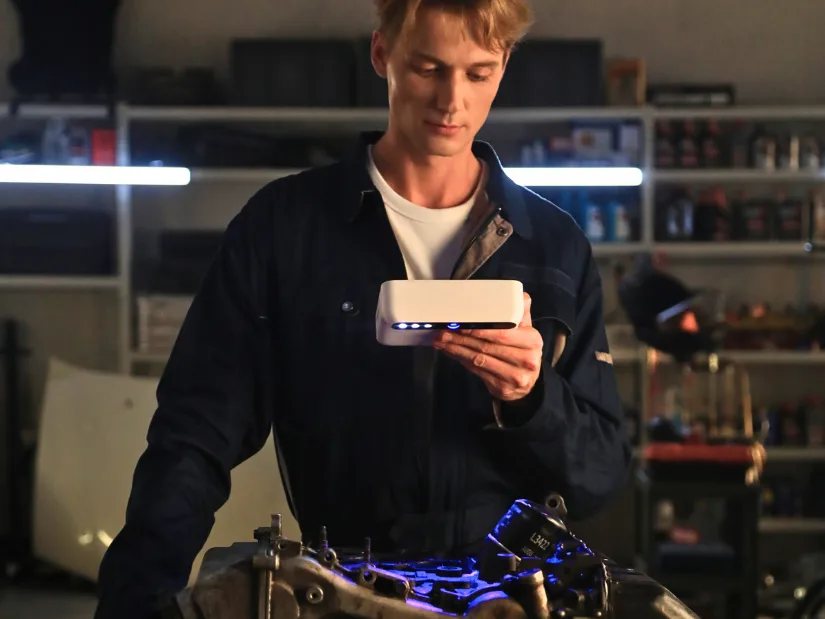

The standout feature of the 3DMakerpro Turtle is its modular design. Rather than relying on a single fixed scanner, Turtle uses interchangeable S, M, and L scanning modules that can be swapped to suit different object sizes and accuracy requirements. Users can operate the scanner as a standalone device with the Control Pad, connect a module directly to a computer, or separate the two for more flexible scanning workflows.
Image: 3DMakerpro
Turtle combines Blue LED optical scanning with a 2.3 MP global shutter image sensor to capture detailed geometry and stable scan data. Depending on the selected module, scanning accuracy ranges from up to 0.01 mm for small, detailed objects to larger capture volumes for medium and large subjects.
The scanner also supports 24-bit color texture capture, scanning speeds of up to 30 FPS when connected to a PC, and optical image stabilization to improve handheld tracking. Together, these features are designed to help users produce detailed 3D models with smoother scanning performance across a wide variety of applications.

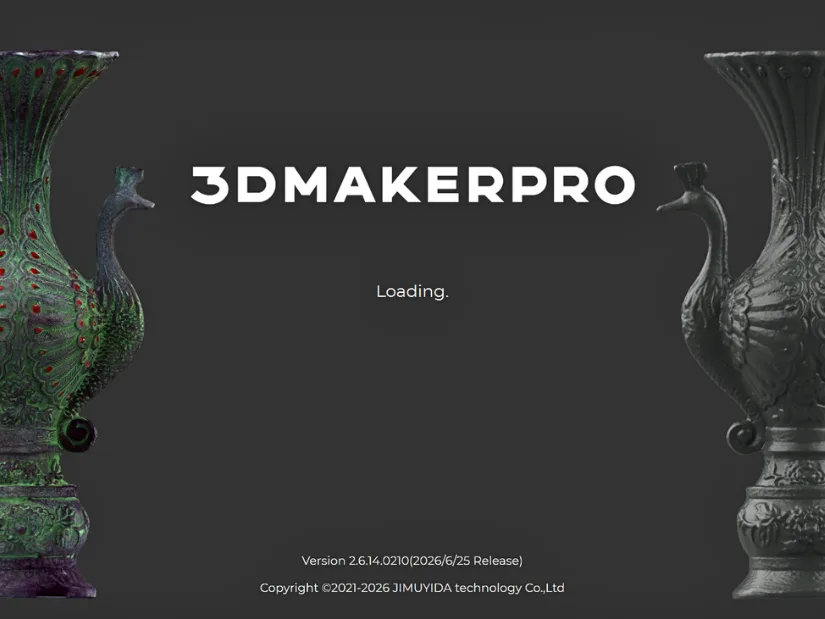

JMStudio Software
The 3DMakerpro Turtle works with JMStudio, the company’s free 3D scanning software developed for the entire 3DMakerpro scanner lineup, including Turtle, Toucan, Fox, Moose, Seal, Lynx, Mole, and Whale.
JMStudio supports scan acquisition, HD real-time preview, texture mapping, 3D model generation, and post-processing. Finished scans can be exported in OBJ, STL, PLY, ASC, and RSCAN formats, making it easy to integrate captured models into CAD, reverse engineering, visualization, and 3D printing workflows.
Scan Examples

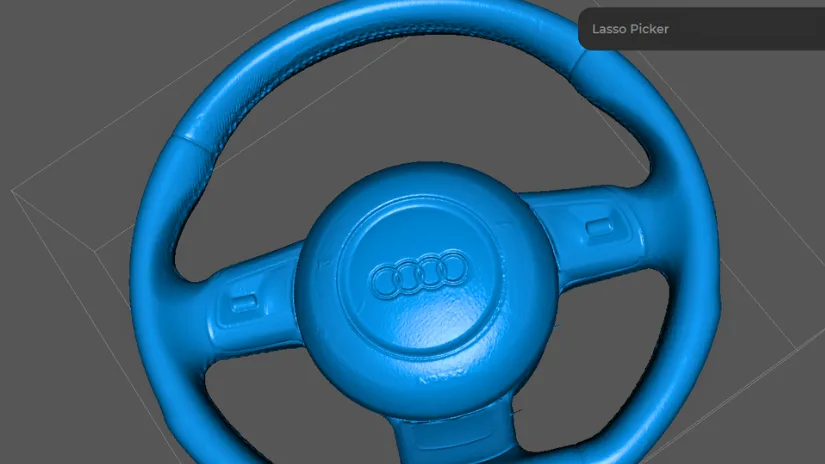

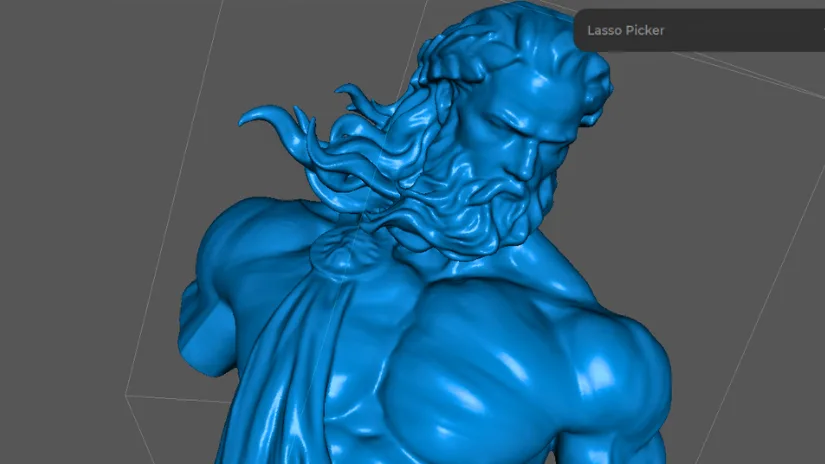

The following examples showcase 3DMakerpro Turtle scan results across different object types and capture scenarios. Rather than focusing on a single application, these examples demonstrate the scanner’s ability to capture detailed geometry, surface textures, and complex shapes using its interchangeable scanning modules.
Scan & Screenshot: 3DMakerpro
The examples above highlight just a selection of the 3DMakerpro Turtle’s scanning capabilities. More scan examples, workflows, and product details are available on the official 3DMakerpro Turtle product page.
For discussions, user examples, and updates from the community, see the official 3DMakerpro Facebook group:
3DMakerpro Community Group.
Have questions? Feel free to ask in the comment section below.
For a wider discussion or to share your own 3DMakerpro scanner experience and results, join us in the forum:
3DMakerpro Toucan Quick Look & Review
©3DWithUs – Scans and Photo: Max Funkner
The 3DMakerpro Toucan is a standalone all in one 3D scanner designed primarily for object scanning. Its compact and portable design makes it suitable for capturing smaller subjects such as everyday objects, models, and design references.
Price: $1,499.00 – $1,999.00
Compare the Prices & Bundles:
Official Website | Amazon
Unlike large scale spatial scanners, Toucan focuses on simplicity and accessibility. The standalone workflow allows creators, makers, and educators to capture objects quickly without requiring complex setups.
We recently tested Toucan here on 3DWithUs and published a hands on review covering its workflow, scanning results, and real world use cases. You can read the full review here: 3DMakerpro Toucan Review: Standalone 3D Scanning Examples.
3DMakerpro LiDAR Spatial 3D Scanners
Spatial 3D scanners are designed to capture large environments rather than small objects. Using LiDAR technology, these scanners measure distances with laser pulses to generate detailed point clouds of rooms, buildings, and outdoor spaces. The result is a digital reconstruction of real-world environments that can be used for visualization, documentation, architecture, surveying, or immersive VR and AR experiences.
The new 3DMakerpro Raven introduces a more creator-focused format and builds on technology previously seen in the professional-grade 3DMakerpro Eagle. Positioned as a personal LiDAR spatial scanner, Raven is designed to capture interiors, rooms, and outdoor environments while offering a more compact and accessible approach to spatial scanning compared to its professional predecessor.

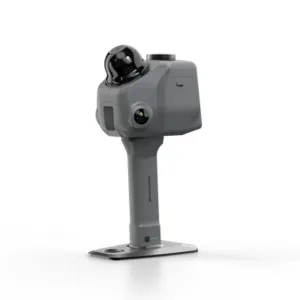

3DMakerpro Raven NEW
Where to Buy – Pricing
Raven
Regular Price: $1,699
Early Bird Price: $919 (Limited to 100 units, use exclusive code Withus80)
Compare the Prices & Bundles:
Official Store
Raven Max
Regular Price: $2,699
Exclusive Price: $1,419 (use code Withus80)
Raven Max RTK
Regular Price: $3,499
Exclusive Price: $1,919 (use code Withus80)

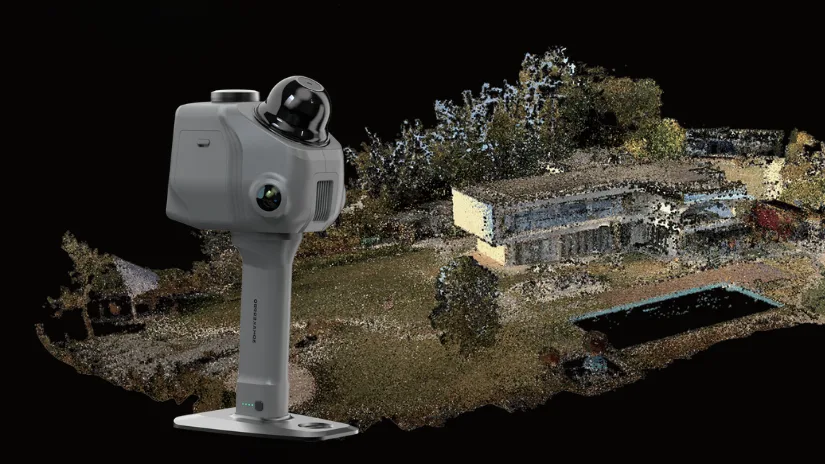

The 3DMakerpro Raven introduces LiDAR-based spatial scanning in a compact, portable format aimed at creators, designers, and professionals who need to capture larger environments. Unlike traditional desktop 3D scanners designed primarily for small objects, Raven focuses on scanning real world spaces such as rooms, interiors, buildings, and outdoor environments.
The scanner combines LiDAR distance measurement with color capture to generate detailed point clouds and spatial reconstructions that can later be processed into various formats suitable for visualization, documentation, and immersive content creation.

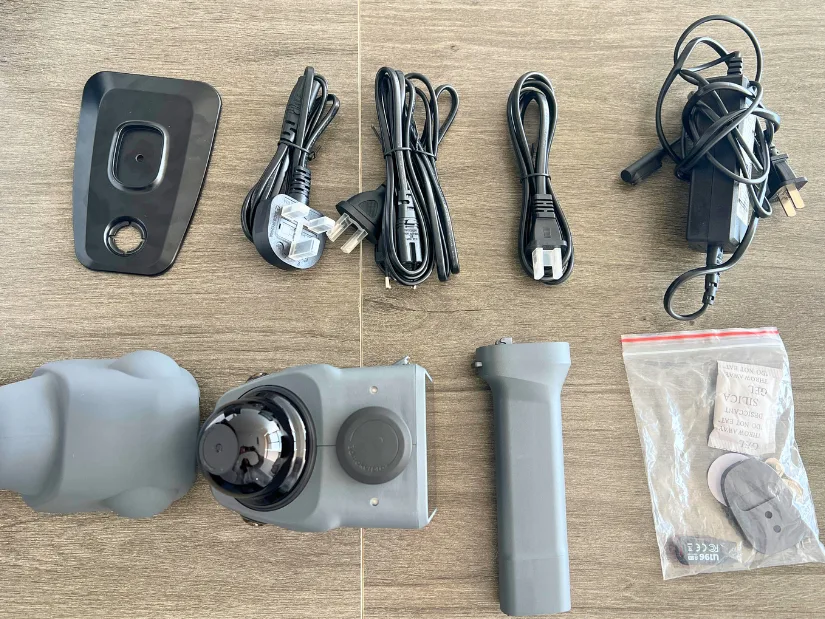

What’s in the Box
The 3DMakerpro Raven package includes the Raven LiDAR scanner, a detachable battery grip, and a holder base for stable placement. The box also contains a power adapter with plug adapters, necessary power cables, and additional accessories. Everything arrives neatly packed alongside documentation to help users get started with the scanner and its software.
Technical Specifications
- Accuracy: Up to 2 cm at 10 m
- Scan Range: Up to 80–100 meters
- Point Cloud Rate: Up to 150,000 points per second
- Scan Angle: 360° horizontal, 40° vertical
- Camera System: 12 MP color camera
- Display: 3.9 inch AMOLED touchscreen
- Connectivity: WiFi 5
- Output Formats: PLY point cloud, Gaussian splatting PLY, OBJ mesh
- Battery: 12,000 mAh modular battery grip
- Operating Time: approximately 2 hours
- Weight: approximately 1.1 kg
Scanning Workflow and On Device Experience

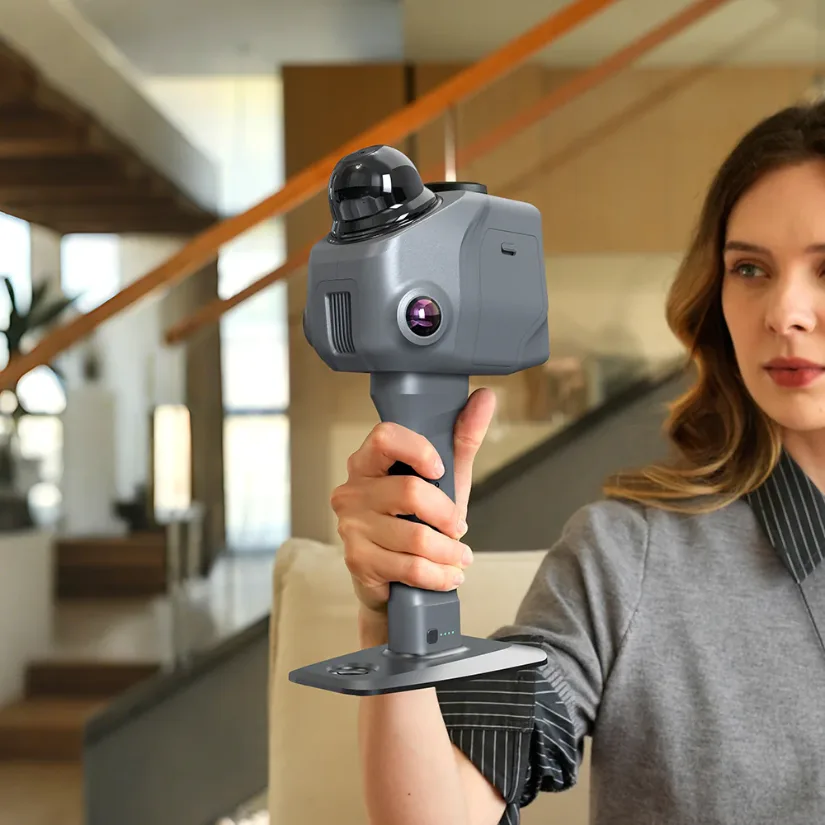

Raven is designed to make spatial scanning accessible through a straightforward workflow. The modular battery grip powers the device and allows mobile operation while scanning larger environments.
After powering on, the scanner performs internal synchronization and IMU initialization. Once ready, users can begin scanning while monitoring the capture process on the integrated AMOLED display.
During scanning it is recommended to move slowly and steadily through the environment while keeping the scanner pointed toward the areas that need to be captured. Maintaining smooth motion helps ensure stable point cloud acquisition and consistent coverage of the scanned space.
RayStudio Software and Data Processing

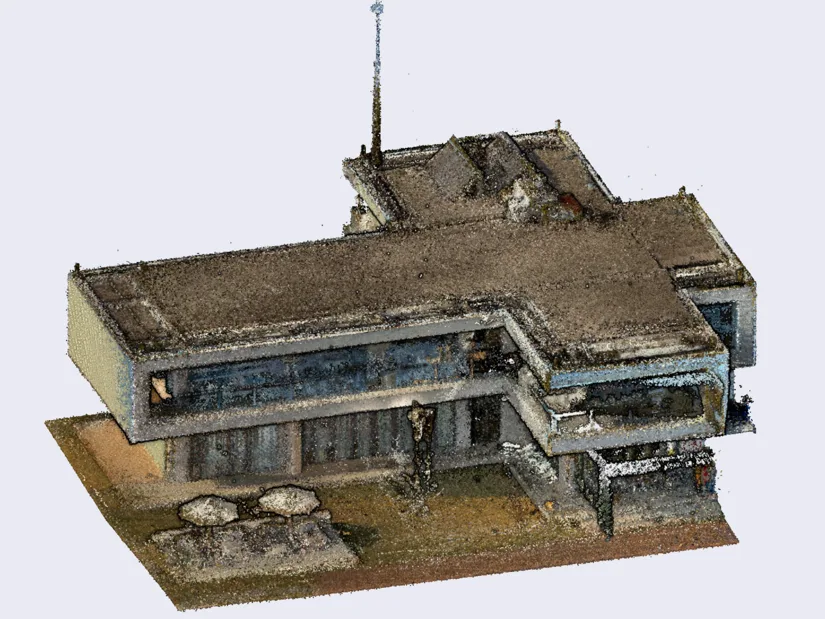

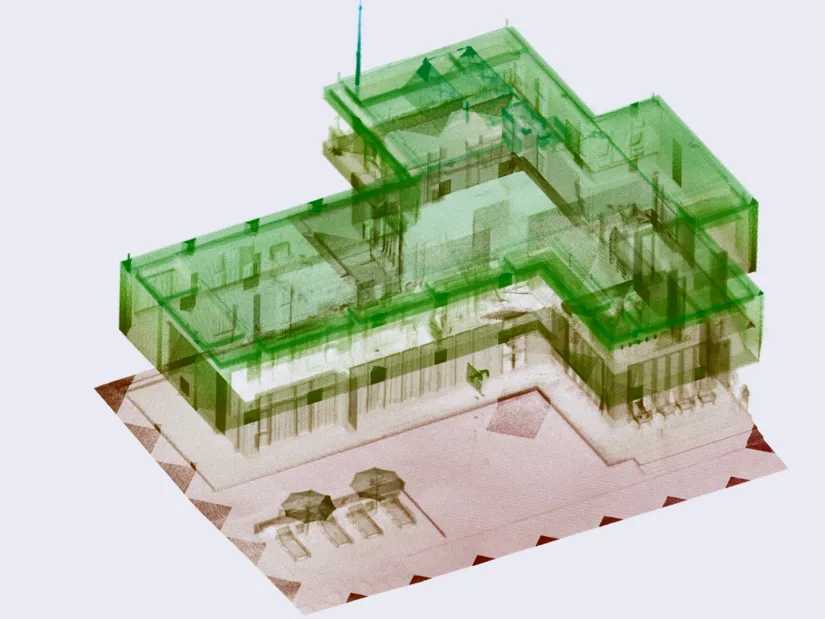

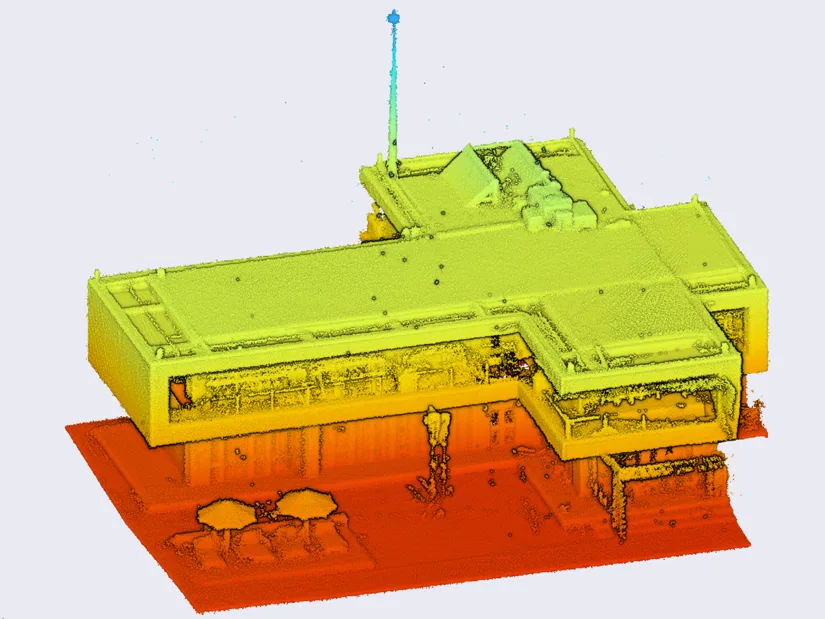

3DMakerpro Raven works together with RayStudio, the company’s processing software for LiDAR based scanning data. RayStudio allows users to process raw capture data into structured point clouds and other usable formats. The following examples show different visualizations generated from a spatial scan processed.
The software supports tasks such as point cloud processing, filtering, thinning, colorization, and visualization. Users can also generate Gaussian splatting data or export polygonal meshes depending on their workflow requirements.
This software layer plays an important role in transforming captured spatial data into practical outputs for visualization, documentation, VR environments, and other digital applications.
3DMakerpro Raven Highlights
According to 3DMakerpro, the new Raven LiDAR spatial scanner introduces several improvements aimed at portability and flexible spatial scanning workflows:
- Swappable Battery System – Designed for extended scanning sessions with hot-swappable batteries, allowing users to continue capturing data without long charging interruptions.
- 12MP Camera – A built-in camera designed to capture detailed color information for spatial scans and reconstructed environments.
- 360° Camera Support – Raven can be paired with compatible 360° cameras such as Insta360 devices for enhanced Gaussian splatting and immersive scene capture.
- Portable Design – With a weight of around 1.1 kg, Raven is designed to be carried easily for indoor and outdoor spatial scanning tasks.
For discussions, user examples, and updates from the community, see the official 3DMakerpro Facebook group:
3DMakerpro Community Group.
Have questions? Feel free to ask in the comment section below.
For a wider discussion or to share your own 3DMakerpro scanners experience and results, join us in the forum:
3DMakerpro Eagle LiDAR Spatial Scanner Quick Look

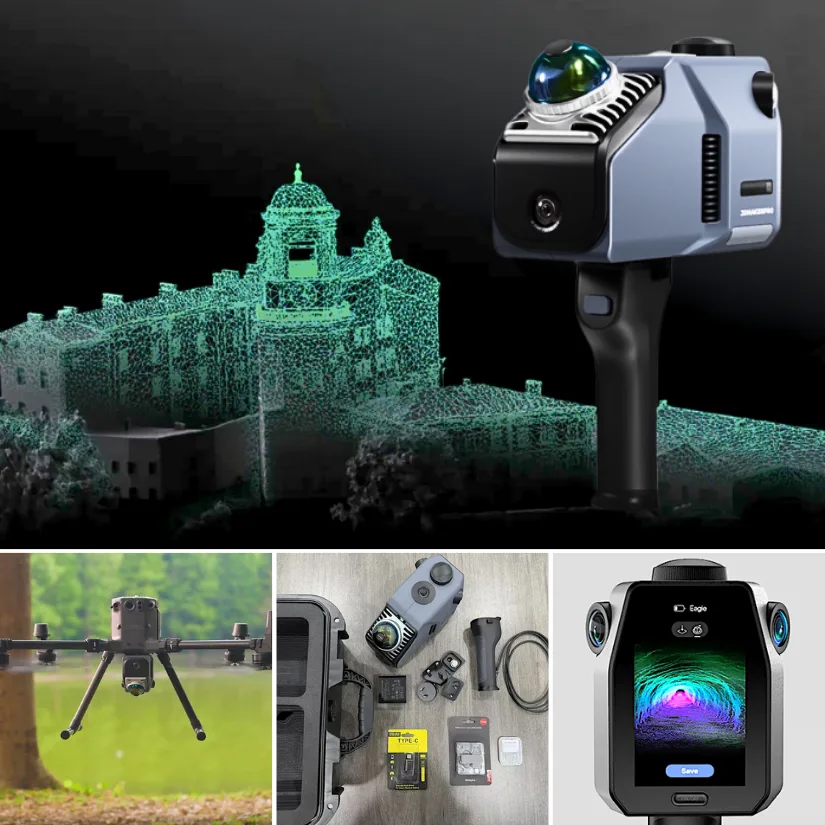

Before Raven, 3DMakerpro introduced the Eagle series, a professional-grade LiDAR spatial scanner designed for more demanding workflows. Eagle focuses on high-precision spatial data capture and has been used in professional environments such as architecture, surveying, digital documentation, and large-scale environment reconstruction.
Eagle Scanner:
Price $1719 – $3499 Discount code: Withus80 -$80
Official Website
The Eagle platform introduced LiDAR-based spatial scanning to the 3DMakerpro ecosystem, targeting professionals who need reliable large-scale 3D capture. With support for advanced workflows such as drone-mounted scanning and detailed spatial reconstruction, Eagle is positioned for applications including architecture, site documentation, surveying, and digital twins. You can read our full overview of the 3DMakerpro Eagle LiDAR spatial scanner in the original launch coverage.
The introduction of Raven can be seen as a move to bring LiDAR spatial scanning into a more accessible format while still leveraging the core technologies that powered Eagle. Compared to Eagle, Raven offers a lighter and more creator focused approach while maintaining the core LiDAR spatial scanning capabilities needed for capturing rooms, buildings, and outdoor environments.
About 3DMakerPro
3DMakerpro, a brand of Shenzhen Jimuyida Technology Co., Ltd., was established in 2015 and focuses on developing both professional and consumer friendly 3D scanners. The company has introduced a range of devices aimed at making 3D scanning more accessible for creators, engineers, and digital artists.
According to the company, 3DMakerpro’s R&D team includes more than 100 engineers working on technologies such as multi spectral projection systems, visual tracking, and markerless registration algorithms. The company reports more than $30 million invested in research and development, along with over 60 patents and 30 software copyrights. Its software development system has been certified at CMMI level 3, and the company operates under an ISO9001 quality management system.
Websites and Social Media:
Store: https://store.3dmakerpro.com/
Facebook: 3DMakerPro
Twitter: @3DMakerPro
E-mail: [email protected]
Conclusion
3DMakerpro continues to expand its lineup of 3D scanning solutions, covering different types of scanning workflows. Spatial LiDAR scanners such as Eagle and Raven are designed to capture larger environments including rooms, buildings, and outdoor spaces, while standalone scanners like Toucan focus on everyday object digitization.
Together these devices illustrate how the company is building a broader ecosystem that supports both spatial scanning and object scanning use cases. As new scanners are introduced and existing devices evolve, we will continue updating this guide to keep it a useful reference for readers exploring the latest 3DMakerpro 3D scanning technology.
